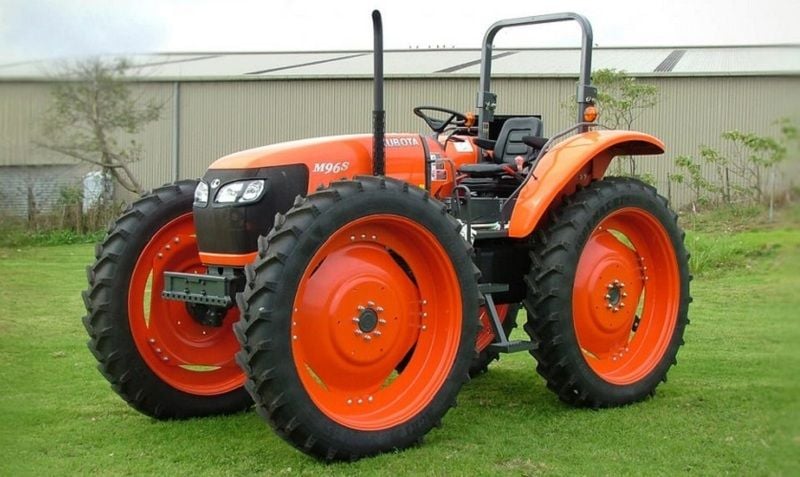

M96S

Powered by a Kubota V3800, 95HP, 4-cylinder, direct injection, turbo charged diesel engine.

Features new LCD instrument panel for quick view of vital function and slanted, full-open hood for quick and easy routine maintenance.

PRODUCT FEATURES

Put the M96SHDM into gear and you’ll immediately feel the power of this 95 net horsepower engine. You’ll notice it in all applications, especially when pulling power is required. Featuring rear drop axle and same sized large diameter tyres, the front axle clearance is 775 mm, giving you ample clearance to help lessen potential crop damage. Mounted to the left of the steering column, the shuttle lever’s fingertip control makes it possible to shift smoothly from forward to reverse without using the clutch or stopping the tractor. Kubota’s multiple wet-disc main clutch operates smoothly and reliably, offering greater durability. The Category II 3-point hitch accepts a variety of rear mounted implements. The hitch’s telescopic stabilisers and lower link ends simplify hook-up and adjustments. The hitch has a lift capacity of 2100 kg. Optional dual assist cylinders raise the capacity to 3400 kg.


ENGINE

The V3800DI-T engine powers the M96 tractor, equipped with Kubota’s revolutionary center-direct injection system (E-CDIS) . The E-CDIS engines offer a unique combination of more power, durability and better fuel efficiency, so you’ll be able to get the job done quicker and more efficiently while minding your budget. These engines also boast lower noise levels, which equates to less stress and fatigue after long work days. This hearty diesel engine employs a reliable 4-valve, center-direct injection system to achieve greater towing power. Combine this with the V3800DI-T’s turbo charger and you have all the power you’ll ever need, especially in the low rpm range, to perform heavy-duty tasks and during operations requiring sure-footed traction.
