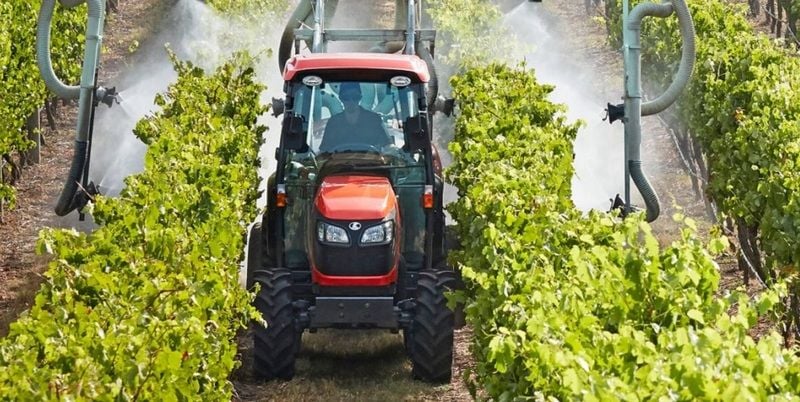

M8540 Narrow ROPS & CAB

The M8540 offers a large pump capacity of 64.3 l/ m. As a result, the front loader cycle times are short, increasing productivity.

The standard 540/540E rpm hydraulic independent PTO (1000 rpm is optional on the M8540) of the Kubota M-Series tractors makes your toughest work easier. Self- modulation engagement with a light touch means implements like a rear cutter engage smoothly.

The PTO brake engages when the clutch is shut off and securely holds the PTO shaft. The PTO clutch can be hydraulically engaged and disengaged on the go.

This means mowing, operating hay equipment or spraying are all made more efficient. The Category II 3-point hitches provide fast and simple attachment of rear-mounted implements. Lift capacity on the M8540 it is 3900kg at ball ends.

PRODUCT FEATURES

Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency. Narrow enough to work between the vines and low enough to get you under the limbs. Kubota has engineered these models specifically for those who work in vineyards, orchards or anywhere else that might require a narrow and compact tractor with M-Series power. With an overall width of just 1,486 mm with standard tyres, you can work almost anywhere. To further ensure that these machines go where you want them, we’ve also rounded the standard fenders, placed the ROPS in the middle of the tractor, included standard foldable hazard lights and made certain that the operating levers are positioned so as not to interfere with low branches.


ENGINE

The V3800DI-T engine powers the Narrow M8540 tractors, equipped with Kubota’s revolutionary center-direct injection system (E-CDIS) . The E-CDIS engines offer a unique combination of more power, durability and better fuel efficiency, so you’ll be able to get the job done quicker and more efficiently while minding your budget. These engines also boast lower noise levels, which equates to less stress and fatigue after long work days. This hearty diesel engine employs a reliable 4-valve, center-direct injection system to achieve greater towing power. Combine this with the V3800DI-T’s turbo charger and you have all the power you’ll ever need, especially in the low rpm range, to perform heavy-duty tasks and during operations requiring sure-footed traction. The engines of the Kubota M-Series tractors comply with Tier II emission regulations.
